Objective: Using the digital Agilent Dmm (DIgital multi meter) graph and record the voltage data. The voltage graph of  6 and 25  are input to to the computer Agilent software. Finally, Results are then imported to a document application, such as Excel.
Â

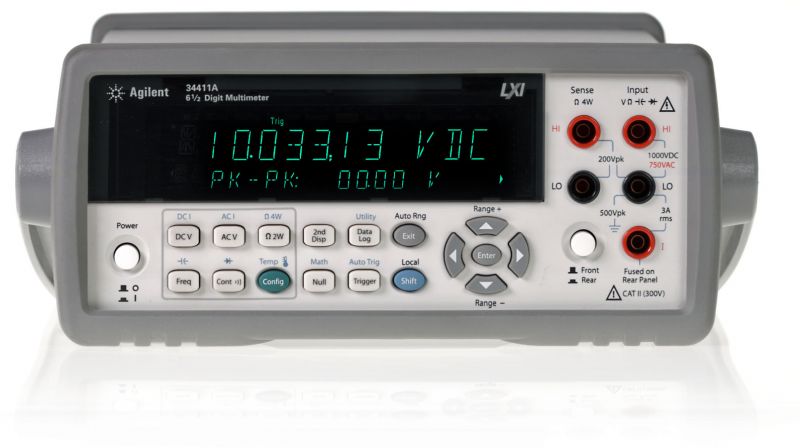

Equipment
Agilent Graphs

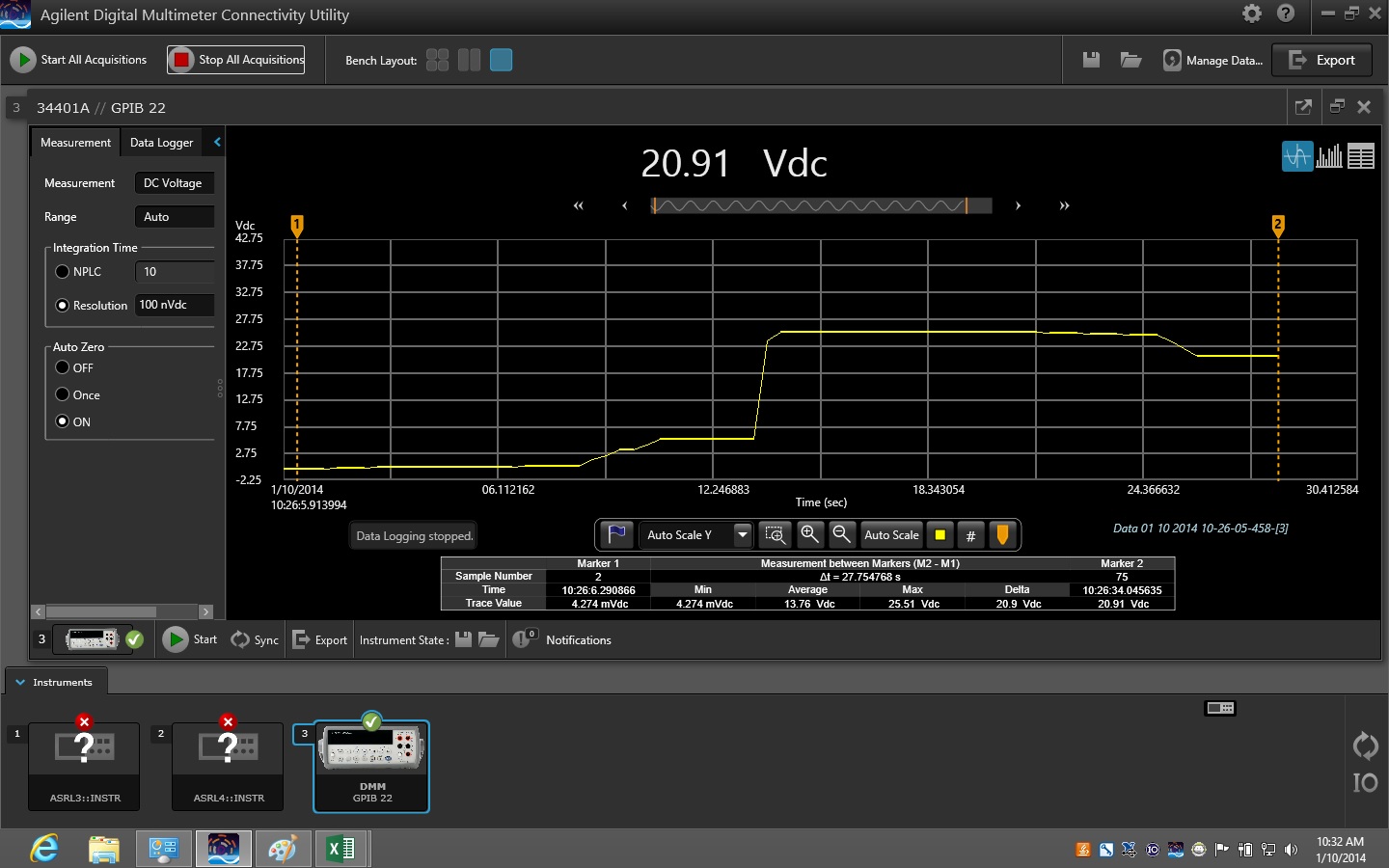

25 Â Volts

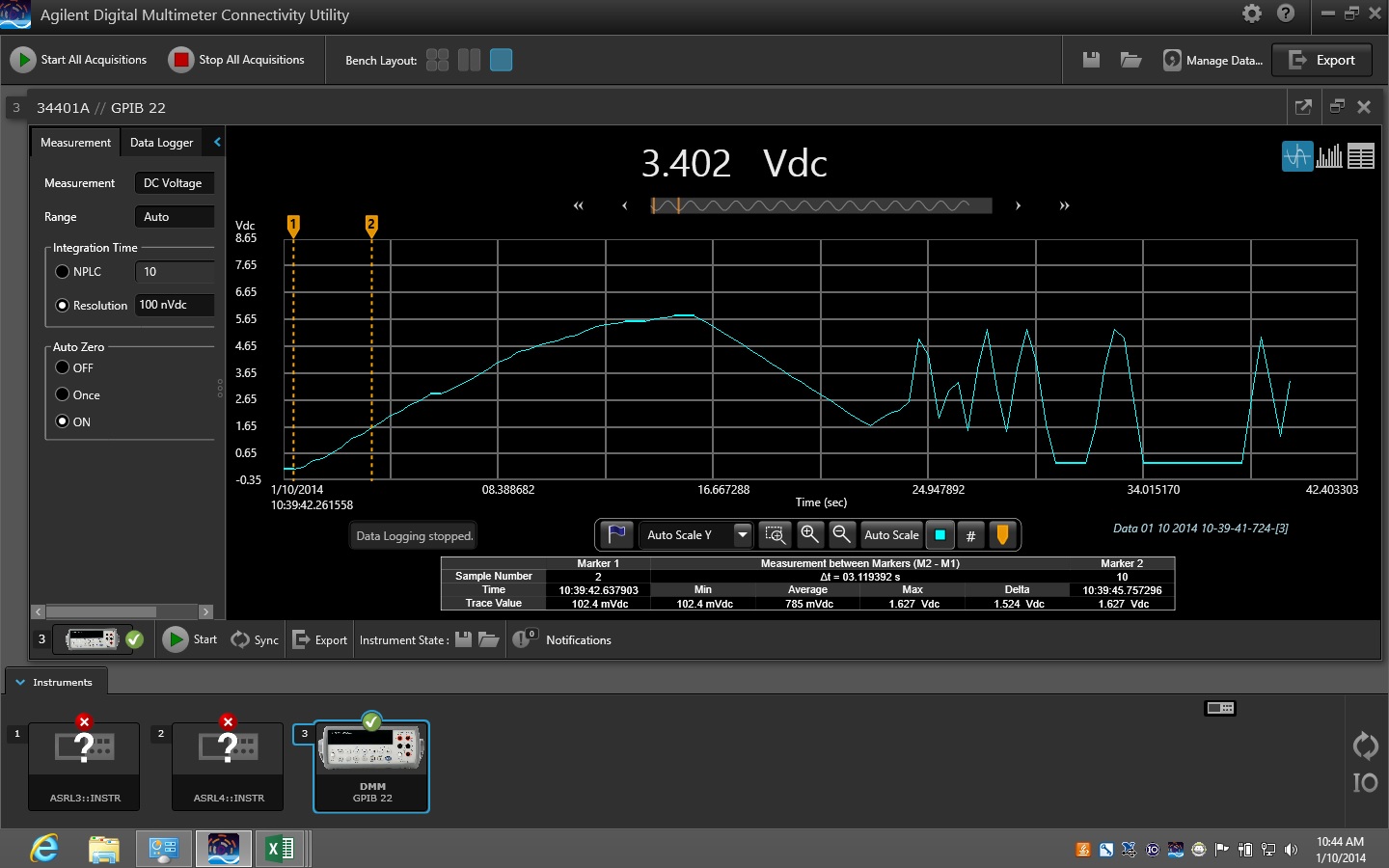

6 Volts
Imported Results
6 Volts Results
| Name: | Data 01 10 2014 10-39-41-724-[3] | | | | | Acquisition Date: | 1/10/2014 10:39 | | | | | Sample Count: | 104 | | | | | NPLC | AutoRange | Range | AutoZero | Function | | 10 | On | 0.1 | On | DC Voltage | | Sample No | Time | Elapsed Time (sec) | [3]Â 34401A // GPIB 22 (Vdc) | | | 1 | 1/10/2014 10:39:42.261 | 0 | 0.10239326 | | | 2 | 1/10/2014 10:39:42.637 | 0.3763456 | 0.10239805 | | | 3 | 1/10/2014 10:39:43.014 | 0.7527043 | 0.18037742 | | | 4 | 1/10/2014 10:39:43.390 | 1.1290746 | 0.4015072 | | | 5 | 1/10/2014 10:39:43.766 | 1.5053763 | 0.50139282 | | | 6 | 1/10/2014 10:39:44.143 | 1.8817625 | 0.70290358 | | | 7 | 1/10/2014 10:39:44.520 | 2.2590964 | 0.92942971 | | | 8 | 1/10/2014 10:39:45.003 | 2.7415344 | 1.2305802 | | | 9 | 1/10/2014 10:39:45.380 | 3.1188985 | 1.3895637 | | | 10 | 1/10/2014 10:39:45.757 | 3.4957383 | 1.6268684 | | | 11 | 1/10/2014 10:39:46.133 | 3.8715412 | 1.8644528 | | | 12 | 1/10/2014 10:39:46.511 | 4.2499425 | 2.1022905 | | | 13 | 1/10/2014 10:39:46.888 | 4.6267705 | 2.2598998 | | | 14 | 1/10/2014 10:39:47.264 | 5.0025789 | 2.4928231 | | | 15 | 1/10/2014 10:39:47.640 | 5.3789257 | 2.654761 | | | 16 | 1/10/2014 10:39:48.016 | 5.7547923 | 2.8871558 | | | 17 | 1/10/2014 10:39:48.392 | 6.1306856 | 2.899646 | | | 18 | 1/10/2014 10:39:48.768 | 6.5069802 | 3.045711 | | | 19 | 1/10/2014 10:39:49.143 | 6.882355 | 3.2043553 | | | 20 | 1/10/2014 10:39:49.521 | 7.2596512 | 3.3996232 | | | 21 | 1/10/2014 10:39:49.897 | 7.6360209 | 3.5958595 | | | 22 | 1/10/2014 10:39:50.273 | 8.0123808 | 3.8368089 | | | 23 | 1/10/2014 10:39:50.650 | 8.388682 | 4.0693789 | | | 24 | 1/10/2014 10:39:51.026 | 8.7650359 | 4.2324655 | | | 25 | 1/10/2014 10:39:51.402 | 9.1408929 | 4.4658149 | | | 26 | 1/10/2014 10:39:51.779 | 9.5177252 | 4.5455282 | | | 27 | 1/10/2014 10:39:52.154 | 9.8930765 | 4.6987841 | | | 28 | 1/10/2014 10:39:52.530 | 10.2694351 | 4.7786649 | | | 29 | 1/10/2014 10:39:52.908 | 10.6467751 | 4.8639232 | | | 30 | 1/10/2014 10:39:53.285 | 11.0241094 | 4.9985569 | | | 31 | 1/10/2014 10:39:53.662 | 11.4004436 | 5.0985861 | | | 32 | 1/10/2014 10:39:54.037 | 11.7758337 | 5.2556807 | | | 33 | 1/10/2014 10:39:54.414 | 12.1526454 | 5.3983755 | | | 34 | 1/10/2014 10:39:54.790 | 12.5284944 | 5.494224 | | | 35 | 1/10/2014 10:39:55.165 | 12.9043431 | 5.4984604 | | | 36 | 1/10/2014 10:39:55.542 | 13.281189 | 5.5983877 | | | 37 | 1/10/2014 10:39:55.919 | 13.657555 | 5.5984066 | | | 38 | 1/10/2014 10:39:56.295 | 14.0338854 | 5.5984217 | | | 39 | 1/10/2014 10:39:56.672 | 14.4112024 | 5.6984712 | | | 40 | 1/10/2014 10:39:57.048 | 14.786596 | 5.7308062 | | | 41 | 1/10/2014 10:39:57.424 | 15.1629395 | 5.7985382 | | | 42 | 1/10/2014 10:39:57.800 | 15.5392642 | 5.7985231 | | | 43 | 1/10/2014 10:39:58.177 | 15.9156039 | 5.7985282 | | | 44 | 1/10/2014 10:39:58.553 | 16.2919557 | 5.6374439 | | | 45 | 1/10/2014 10:39:58.928 | 16.6672882 | 5.4039179 | | | 46 | 1/10/2014 10:39:59.305 | 17.043653 | 5.1688432 | | | 47 | 1/10/2014 10:39:59.682 | 17.4210244 | 4.9408686 | | | 48 | 1/10/2014 10:40:00.057 | 17.7963433 | 4.7094709 | | | 49 | 1/10/2014 10:40:00.435 | 18.1736629 | 4.4747651 | | | 50 | 1/10/2014 10:40:00.811 | 18.5499959 | 4.2476231 | | | 51 | 1/10/2014 10:40:01.187 | 18.9258688 | 4.0165983 | | | 52 | 1/10/2014 10:40:01.564 | 19.3027437 | 3.7820914 | | | 53 | 1/10/2014 10:40:01.939 | 19.6780461 | 3.5506346 | | | 54 | 1/10/2014 10:40:02.316 | 20.0553865 | 3.3189276 | | | 55 | 1/10/2014 10:40:02.692 | 20.4312473 | 3.0841602 | | | 56 | 1/10/2014 10:40:03.069 | 20.8080912 | 2.8514645 | | | 57 | 1/10/2014 10:40:03.444 | 21.1834327 | 2.6238868 | | | 58 | 1/10/2014 10:40:03.821 | 21.5598338 | 2.3836727 | | | 59 | 1/10/2014 10:40:04.197 | 21.9361344 | 2.1502654 | | | 60 | 1/10/2014 10:40:04.574 | 22.3124514 | 1.9181969 | | | 61 | 1/10/2014 10:40:04.950 | 22.6888071 | 1.718597 | | | 62 | 1/10/2014 10:40:05.327 | 23.0661858 | 1.95178 | | | 63 | 1/10/2014 10:40:05.704 | 23.4424823 | 2.1837427 | | | 64 | 1/10/2014 10:40:06.080 | 23.8188261 | 2.300306 | | | 65 | 1/10/2014 10:40:06.457 | 24.1961914 | 2.6060605 | | | 66 | 1/10/2014 10:40:06.834 | 24.5725179 | 4.9247826 | | | 67 | 1/10/2014 10:40:07.209 | 24.9478926 | 4.3431916 | | | 68 | 1/10/2014 10:40:07.585 | 25.3242074 | 1.9877999 | | | 69 | 1/10/2014 10:40:07.962 | 25.7005517 | 3.0049469 | | | 70 | 1/10/2014 10:40:08.338 | 26.076922 | 3.3170789 | | | 71 | 1/10/2014 10:40:09.010 | 26.7485348 | 1.5117497 | | | 72 | 1/10/2014 10:40:09.386 | 27.1248965 | 3.8399586 | | | 73 | 1/10/2014 10:40:09.762 | 27.501202 | 5.2985855 | | | 74 | 1/10/2014 10:40:10.139 | 27.8775895 | 3.0773396 | | | 75 | 1/10/2014 10:40:10.777 | 28.5156514 | 1.4998727 | | | 76 | 1/10/2014 10:40:11.154 | 28.8925432 | 3.8126294 | | | 77 | 1/10/2014 10:40:11.530 | 29.2688467 | 5.2985565 | | | 78 | 1/10/2014 10:40:11.906 | 29.645186 | 4.0942287 | | | 79 | 1/10/2014 10:40:12.283 | 30.0215512 | 1.7777676 | | | 80 | 1/10/2014 10:40:12.699 | 30.4384391 | 0.30168545 | | | 81 | 1/10/2014 10:40:13.086 | 30.8252471 | 0.30166152 | | | 82 | 1/10/2014 10:40:13.462 | 31.2006022 | 0.30165346 | | | 83 | 1/10/2014 10:40:13.838 | 31.576942 | 0.30164767 | | | 84 | 1/10/2014 10:40:14.354 | 32.0929101 | 1.6078736 | | | 85 | 1/10/2014 10:40:14.730 | 32.4688172 | 3.9237789 | | | 86 | 1/10/2014 10:40:15.107 | 32.8461153 | 5.2985099 | | | 87 | 1/10/2014 10:40:15.483 | 33.2214709 | 4.9712303 | | | 88 | 1/10/2014 10:40:15.859 | 33.5977947 | 2.6528833 | | | 89 | 1/10/2014 10:40:16.276 | 34.01517 | 0.30173267 | | | 90 | 1/10/2014 10:40:16.652 | 34.3910356 | 0.30166253 | | | 91 | 1/10/2014 10:40:17.029 | 34.7679021 | 0.30165296 | | | 92 | 1/10/2014 10:40:17.406 | 35.1452182 | 0.30164364 | | | 93 | 1/10/2014 10:40:17.783 | 35.5216002 | 0.30164666 | | | 94 | 1/10/2014 10:40:18.159 | 35.8978961 | 0.30165044 | | | 95 | 1/10/2014 10:40:18.535 | 36.274268 | 0.30163332 | | | 96 | 1/10/2014 10:40:18.912 | 36.6505866 | 0.30162903 | | | 97 | 1/10/2014 10:40:19.288 | 37.0264621 | 0.3016454 | | | 98 | 1/10/2014 10:40:19.664 | 37.4033136 | 0.30164994 | | | 99 | 1/10/2014 10:40:20.045 | 37.7836248 | 0.3016522 | | | 100 | 1/10/2014 10:40:20.462 | 38.2005286 | 2.7018355 | | | 101 | 1/10/2014 10:40:20.837 | 38.5763788 | 5.0262727 | | | 102 | 1/10/2014 10:40:21.214 | 38.9527259 | 3.2122552 | | | 103 | 1/10/2014 10:40:21.590 | 39.3290626 | 1.3009291 | | | 104 | 1/10/2014 10:40:21.966 | 39.7049115 | 3.4017439 | |
25 Volts Results
Name: | Data 01 10 2014 10-26-05-458-[3] | Agilent DMM +25V | | | | | Acquisition Date: | 1/10/2014 10:26 | | | | | | Sample Count: | 75 | | | | | | NPLC | AutoRange | Range | AutoZero | Function | | | 10 | On | 0.1 | On | DC Voltage | | | Sample No | Time | Elapsed Time (sec) | [3]Â 34401A // GPIB 22 (Vdc) | | | | 1 | 1/10/2014 10:26:05.913 | 0 | 0.004294517 | | | | 2 | 1/10/2014 10:26:06.290 | 0.3768728 | 0.004274051 | | | | 3 | 1/10/2014 10:26:06.716 | 0.80274 | 0.004279004 | | | | 4 | 1/10/2014 10:26:07.092 | 1.1781353 | 0.028217544 | | | | 5 | 1/10/2014 10:26:07.468 | 1.5544684 | 0.104629 | | | | 6 | 1/10/2014 10:26:07.885 | 1.9718118 | 0.20494278 | | | | 7 | 1/10/2014 10:26:08.262 | 2.3481812 | 0.20495462 | | | | 8 | 1/10/2014 10:26:08.638 | 2.7240443 | 0.25157812 | | | | 9 | 1/10/2014 10:26:09.014 | 3.1008911 | 0.3045211 | | | | 10 | 1/10/2014 10:26:09.391 | 3.4772523 | 0.30453294 | | | | 11 | 1/10/2014 10:26:09.767 | 3.8535736 | 0.3045075 | | | | 12 | 1/10/2014 10:26:10.143 | 4.2299272 | 0.30451631 | | | | 13 | 1/10/2014 10:26:10.519 | 4.6057901 | 0.30453394 | | | | 14 | 1/10/2014 10:26:10.896 | 4.982612 | 0.30454956 | | | | 15 | 1/10/2014 10:26:11.273 | 5.359019 | 0.30454024 | | | | 16 | 1/10/2014 10:26:11.649 | 5.735381 | 0.30453822 | | | | 17 | 1/10/2014 10:26:12.026 | 6.1121627 | 0.4049227 | | | | 18 | 1/10/2014 10:26:12.402 | 6.4885492 | 0.40492144 | | | | 19 | 1/10/2014 10:26:12.779 | 6.865387 | 0.46660016 | | | | 20 | 1/10/2014 10:26:13.155 | 7.2412332 | 0.50525474 | | | | 21 | 1/10/2014 10:26:13.531 | 7.6170976 | 0.50525928 | | | | 22 | 1/10/2014 10:26:13.907 | 7.9934343 | 0.50527363 | | | | 23 | 1/10/2014 10:26:14.284 | 8.3702778 | 0.50525739 | | | | 24 | 1/10/2014 10:26:14.771 | 8.857255 | 1.839087 | | | | 25 | 1/10/2014 10:26:15.147 | 9.2335789 | 2.5054607 | | | | 26 | 1/10/2014 10:26:15.524 | 9.6109322 | 3.5049177 | | | | 27 | 1/10/2014 10:26:15.901 | 9.9872912 | 3.5050084 | | | | 28 | 1/10/2014 10:26:16.277 | 10.3636299 | 4.505468 | | | | 29 | 1/10/2014 10:26:16.653 | 10.7399736 | 5.5056286 | | | | 30 | 1/10/2014 10:26:17.030 | 11.1163571 | 5.5057168 | | | | 31 | 1/10/2014 10:26:17.407 | 11.4936734 | 5.5057722 | | | | 32 | 1/10/2014 10:26:17.784 | 11.8700292 | 5.5057797 | | | | 33 | 1/10/2014 10:26:18.160 | 12.2468834 | 5.5057923 | | | | 34 | 1/10/2014 10:26:18.536 | 12.6227061 | 5.5057772 | | | | 35 | 1/10/2014 10:26:18.913 | 12.9990904 | 5.5057873 | | | | 36 | 1/10/2014 10:26:19.289 | 13.3754275 | 5.5057672 | | | | 37 | 1/10/2014 10:26:19.725 | 13.811818 | 23.744779 | | | | 38 | 1/10/2014 10:26:20.101 | 14.1871903 | 25.506229 | | | | 39 | 1/10/2014 10:26:20.477 | 14.5635533 | 25.506646 | | | | 40 | 1/10/2014 10:26:20.853 | 14.9398803 | 25.506658 | | | | 41 | 1/10/2014 10:26:21.230 | 15.3162393 | 25.506759 | | | | 42 | 1/10/2014 10:26:21.606 | 15.6925681 | 25.506861 | | | | 43 | 1/10/2014 10:26:21.982 | 16.0689314 | 25.506873 | | | | 44 | 1/10/2014 10:26:22.359 | 16.4452882 | 25.506835 | | | | 45 | 1/10/2014 10:26:22.735 | 16.821637 | 25.506886 | | | | 46 | 1/10/2014 10:26:23.111 | 17.197959 | 25.506886 | | | | 47 | 1/10/2014 10:26:23.504 | 17.590363 | 25.506911 | | | | 48 | 1/10/2014 10:26:23.880 | 17.9666856 | 25.506861 | | | | 49 | 1/10/2014 10:26:24.257 | 18.3430543 | 25.506785 | | | | 50 | 1/10/2014 10:26:24.634 | 18.7203871 | 25.506835 | | | | 51 | 1/10/2014 10:26:25.009 | 19.0957476 | 25.506886 | | | | 52 | 1/10/2014 10:26:25.386 | 19.4725734 | 25.506861 | | | | 53 | 1/10/2014 10:26:25.763 | 19.8494339 | 25.506949 | | | | 54 | 1/10/2014 10:26:26.138 | 20.2247938 | 25.506949 | | | | 55 | 1/10/2014 10:26:26.515 | 20.6016549 | 25.506911 | | | | 56 | 1/10/2014 10:26:26.891 | 20.9774987 | 25.506911 | | | | 57 | 1/10/2014 10:26:27.268 | 21.3543543 | 25.406688 | | | | 58 | 1/10/2014 10:26:27.646 | 21.7322001 | 25.307235 | | | | 59 | 1/10/2014 10:26:28.022 | 22.1080463 | 25.30726 | | | | 60 | 1/10/2014 10:26:28.398 | 22.4849301 | 25.223612 | | | | 61 | 1/10/2014 10:26:28.775 | 22.861235 | 25.106557 | | | | 62 | 1/10/2014 10:26:29.151 | 23.2376161 | 25.080721 | | | | 63 | 1/10/2014 10:26:29.528 | 23.6144506 | 25.007016 | | | | 64 | 1/10/2014 10:26:29.905 | 23.9913174 | 24.906754 | | | | 65 | 1/10/2014 10:26:30.280 | 24.3666325 | 24.906729 | | | | 66 | 1/10/2014 10:26:30.657 | 24.7439924 | 24.906679 | | | | 67 | 1/10/2014 10:26:31.033 | 25.1193683 | 23.906945 | | | | 68 | 1/10/2014 10:26:31.409 | 25.4957087 | 22.341852 | | | | 69 | 1/10/2014 10:26:31.786 | 25.8720406 | 20.90625 | | | | 70 | 1/10/2014 10:26:32.162 | 26.2488719 | 20.905972 | | | | 71 | 1/10/2014 10:26:32.538 | 26.6247635 | 20.905859 | | | | 72 | 1/10/2014 10:26:32.915 | 27.001581 | 20.905808 | | | | 73 | 1/10/2014 10:26:33.292 | 27.3784729 | 20.905808 | | | | 74 | 1/10/2014 10:26:33.668 | 27.7547701 | 20.905871 | | | | 75 | 1/10/2014 10:26:34.045 | 28.1316411 | 20.905859 | | | | Group Members: | Kendall Kelly | JoJo Makuwa | Jared Ruggles | Melchior Joseph | Christian Col |
|
